This example explains, how an indicator light is created in a push-button for the functions "Coming home/leaving home":
The advantage is that a light in a push-button indicates when "leaving home" or any other specific status is active in the system. The following material is required:
|Qty.||Description||Manufacturer||Order no./product name|
|1||Push-button terminal block green||digitalSTROM||GN-TKM200|
|1||Push-button with indicator light green with lateral lense||Feller||554 431 004|

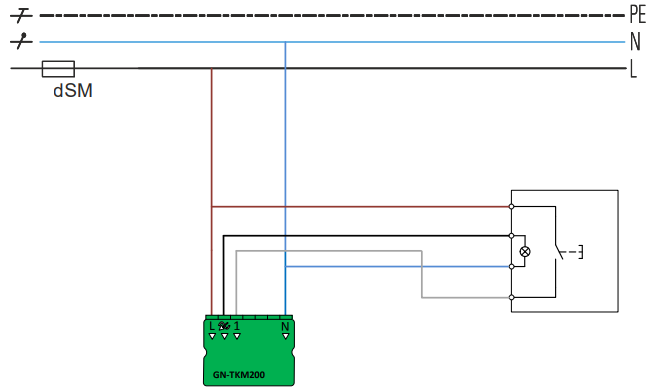

To connect the GN-TKM200 with the push-button, please proceed as follows:
There is no special configuration needed. The GN-TKM200 is factory set to "leaving home", that means the indicator light is active as soon as „leaving home" is called up. To do so, press the push-button firmly for at least 3 seconds.
