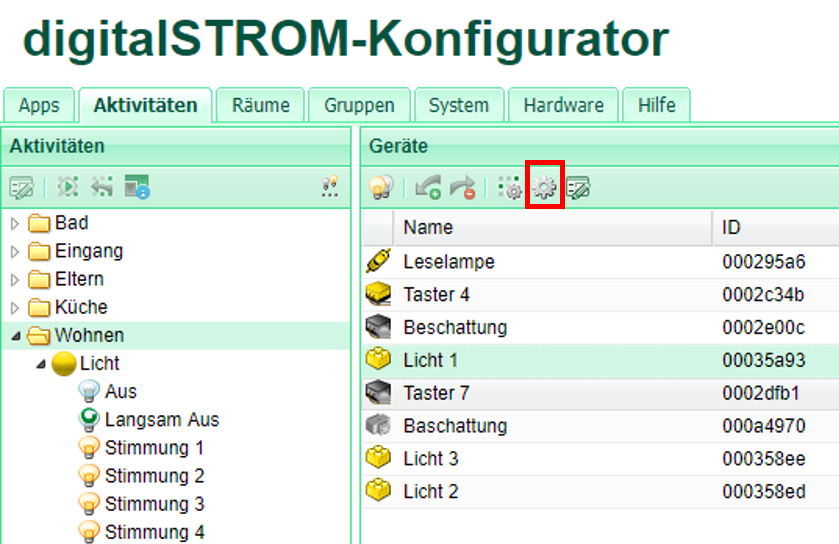

- To create an area, open the digitalSTROM configurator and click on the tab "activities".
- Now open the device properties.

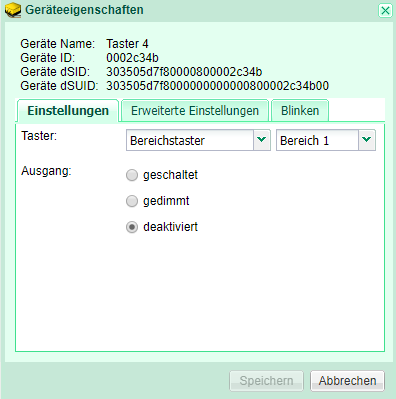

- Select "area push-button" in the device properties. Afterwards you can select an area for the device.

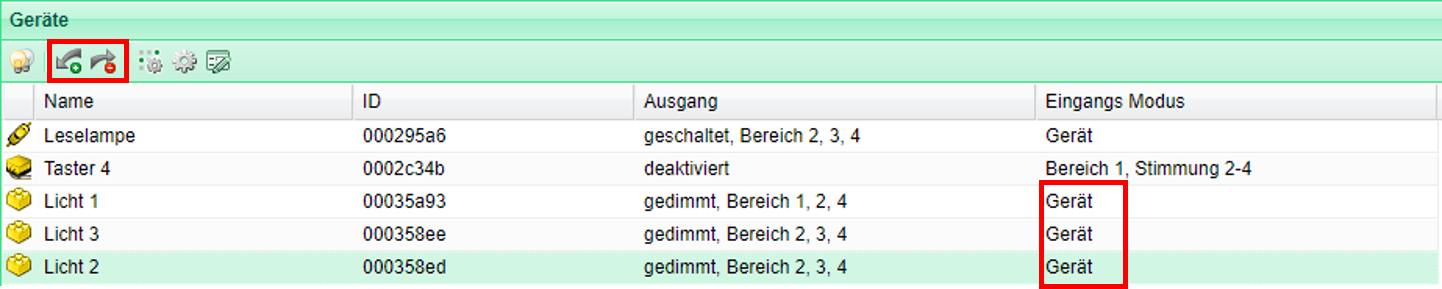

Attention: Devices are always displayed in all areas. Tu turn it on in an area with an area push-button, select wither "add to area" or "remove from area". After that you will see under "output" in which area the lights are active.
For correct configuration, you should only configure push-buttons for areas and switch yellow (light) terminal blocks as devices.
